人类有大约2万个蛋白编码基因，但其序列的总长度仅占人类基因组总长度的1.5%左右。另一方面，人类基因组序列的~70%甚至更多都会被转录成RNA，它们很多都是非编码的RNA（noncoding RNA，ncRNA)。但对于为数众多的非编码RNA (ncRNA)，我们还知之甚少。

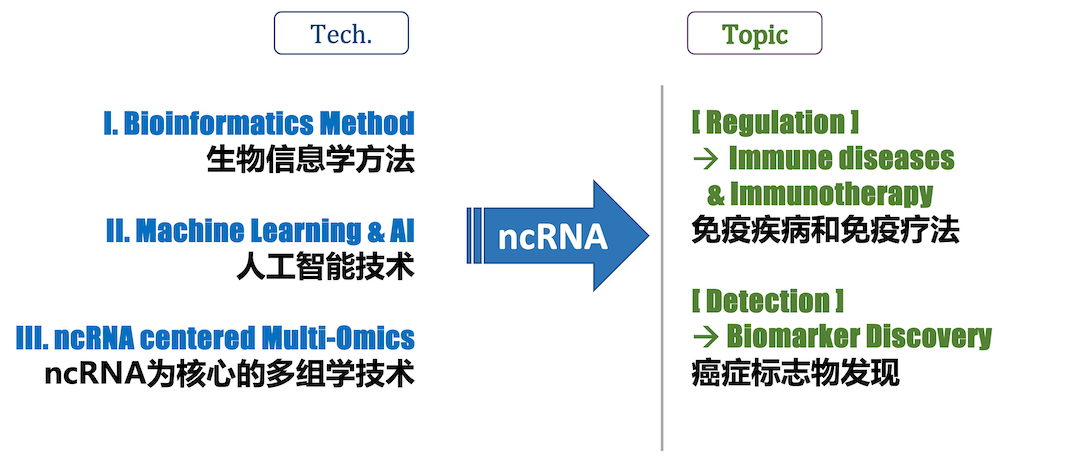

我们围绕非编码RNA发展生物信息学技术，从结构和转录后调控（例如剪接和编辑）等多个角度、多个模型探讨非编码RNA的调控作用，并探索其在复杂疾病精准诊疗上的具体实践。我们充分发挥生物信息学这一交叉学科优势，通过和协和、清华长庚等一线医生专家的合作，在癌症、自身免疫疾病等复杂疾病上探索新的以非编码 RNA 为表现形式的靶标。在研究其免疫调控网络的同时，部分靶标可以应用为个性化精准诊疗时的生物标志物，部分靶标可以做为药物靶点通过AI进行药物设计，在复杂疾病（如癌症和自身免疫疾病）的临床诊断和治疗两个方面实现应用价值。

About 20 thousand protein-coding genes in human were transcribed and tranlsated from only ~1.5% of human genome sequence. On the other hand, ~70% or more of the human genome are transcribed into RNAs. Many of them are noncoding RNAs (ncRNAs), which are not well studied yet.

We develop bioinformatics technology on noncoding RNAs from multiple perspectives/models of RNA structure and post-transcriptional regulation (e.g., splicing and editing); and explore its practice in the precise diagnosis and treatment of complex diseases. We utilize bioinformatics to explore new targets in the form of noncoding RNA in complex diseases such as cancer and autoimmune diseases through cooperation with front-line doctors and experts. While studying their regulation network, some targets can be used as biomarkers for personalized and precise diagnosis and treatment, and some targets can be used as drug targets for drug design through AI.

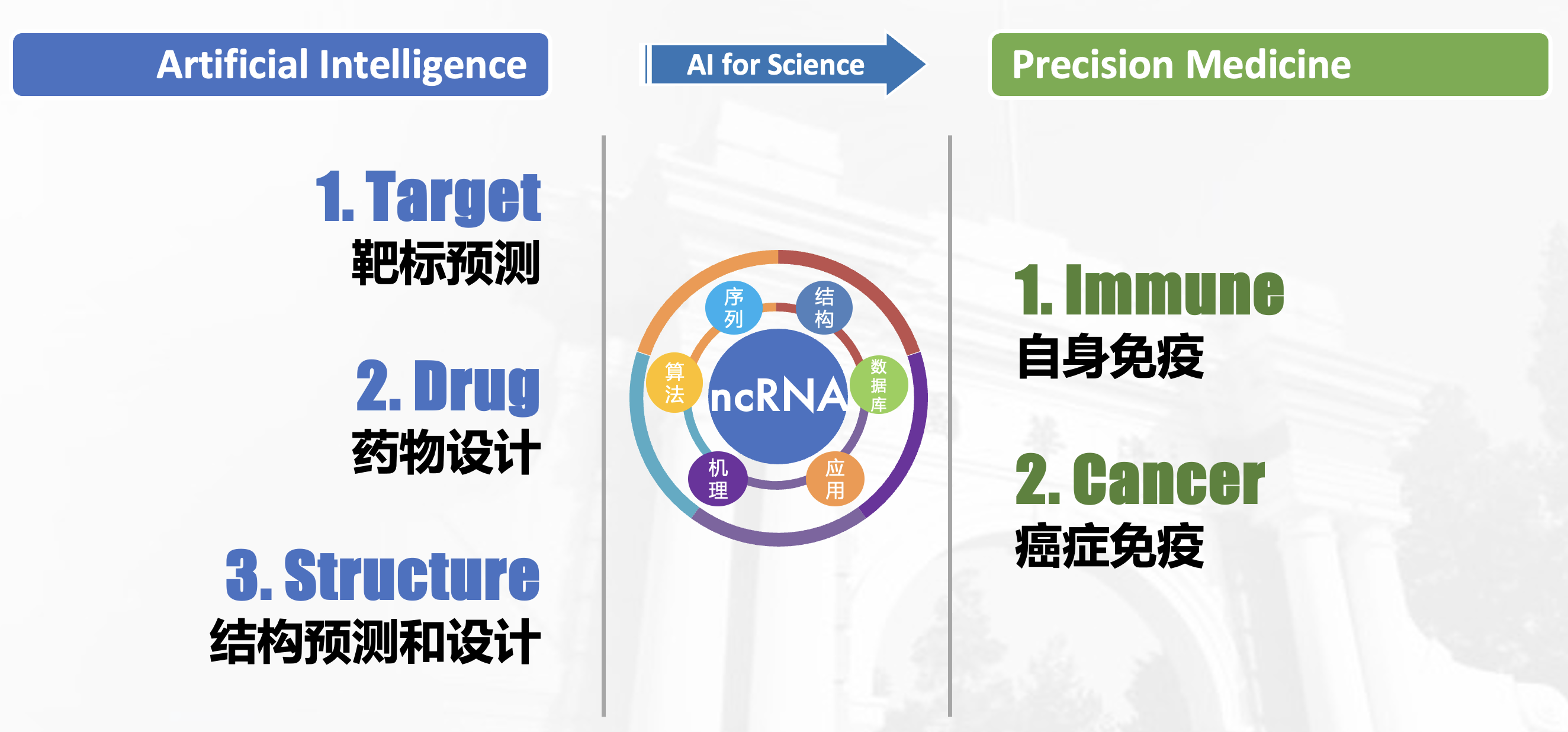

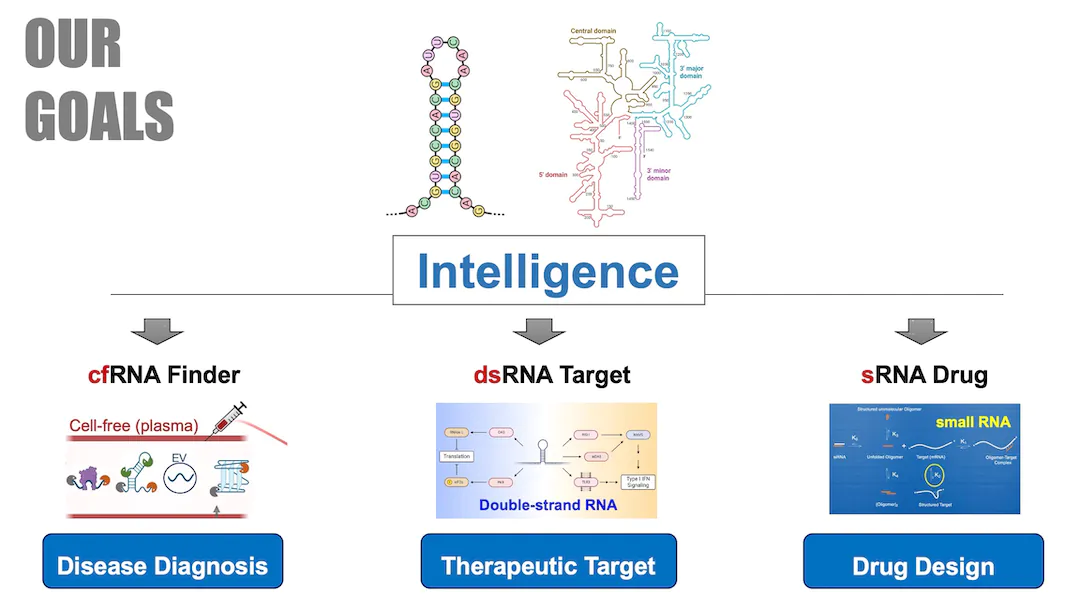

我们围绕非编码 RNA（ncRNA）分两个主要的科研方向：1）生信驱动的精准医疗；2）AI驱动的核酸模型：

We have two major research directions centered on noncoding RNA (ncRNA), I. Bioinfo-driven Precision Medicine; II. AI-driven RNA Modeling :

I. Bioinfo-driven Precision Medicine

By integrating transcriptomics data with other multiomics data, we aim to explain development of complex diseases based on an integrative, multi-dimensional level. We develop sequencing and bioinformatics methods to study cellular and extracellular transcriptome of coding and noncoding RNAs (ncRNAs) for varous immune cells of patients at the single-cell level and multi-molecular level.

Accurately selecting the best diagnosis and treatment plan is important but difficult for complex diseases. For instance, some targeted drugs have been approved for many complex diseases, but the which benefit groups of different drugs are not yet clear, requiring accurate biomarkers. Therefore, by combining the immune cell data m with cfDNA/cfRNA in plasma and clinical data, we develop a drug-efficacy prediction model to provide a multi-modal biomarker for a precise drug instruction in the treatment of complex diseases. Meanwhile, we explore deep learning, transfer learning, similarity network fusion and other bioinformatics analysis techniques for these data.

We apply the above methods to precision medicine, focusing on two types of diseases: 1) Immune-medicated diseases；2) Cancer.

通过将转录组学数据与其他多组学数据整合，我们旨在从综合的、多维的水平上去解释复杂疾病的发展。 我们开发测序和生物信息学方法来研究编码和非编码 RNA (ncRNA) 的细胞和细胞外转录组，从单细胞水平和多分子水平研究患者各种免疫细胞内外编码和非编码基因的调控图谱。

对于复杂疾病来说，准确选择最佳的诊疗方案很重要，但也很困难。 例如，一些靶向药物已被批准用于许多复杂疾病，但不同药物的受益人群尚不清楚，需要准确的生物标志物。 因此，通过将免疫细胞数据与血浆中的cfDNA/cfRNA数据以及临床数据相结合，我们开发药效预测模型，为治疗复杂疾病的精确药物指导提供多模态标志物模型。同时，我们针对这些数据探索深度学习、迁移学习、相似性网络融合，以及其他生物信息学分析技术。

我们将上述方法应用于精准医疗，重点关注两类疾病：1）自身免疫疾病；2）癌症。

1. Noncoding RNA Study in Immune System

Discoverying novel noncoding RNAs. With the advancement of sequencing technology, especially the development and maturity of sequencing technology at the single-cell and single-molecule level, we have the ability to discover new noncoding RNAs from more species, more tissues, and more cell types. For example, we can discover and study new noncoding RNAs under different environments and conditions from the metatranscriptome of diverse microbial communities. These studies will not only expand our understanding of the diversity of life, but may also reveal new biological mechanisms cross-species.

Discoverying novel noncoding RNAs: 随着测序技术的进步，尤其是单细胞、单分子水平的测序技术的发展和成熟，我们有能力从更多物种、更多组织、更多细胞类型中发现新的非编码RNA。例如，我们可以从纷繁复杂的微生物群落的宏转录组中发现和研究不同环境和条件下的新非编码 RNA。这些研究不仅将扩大我们对生命多样性的理解，还可能揭示新的、跨物种的生物学机制。

RNA regulation in immune system. RNAs are dynamicly regulated during transcription. In addition, after RNA is transcribed, it will also have very complex and fine post-transcriptional regulation, such as alternative splicing (AS), alternative polyadenylation (APA), degradation, editing, modification, cellular localization and so on. These are closely related to the structure of RNA itself and the proteins that recognize RNA sequence and structure. At the same time, RNAs, especially noncoding RNAs (ncRNAs), also regulate other macromolecules, thus playing important roles in innate immune response to viruses and cancer immunity. We explore these complex regulatory processes in complex diseases such as cancer and autoimmune diseases, which are applied to immunotherapy.

RNA regulation in immune system: RNA不仅在转录时被动态调控，而且在被转录后也会有着非常复杂而精细的调控工程，例如剪接，修饰，细胞定位，编辑，加尾，降解等等。而这些又和RNA自身的结构以及识别RNA序列和结构的蛋白息息相关。同时，RNA，尤其是非编码 RNA (ncRNA)，还会调控其他大分子，从而在人体对病毒的免疫应答以及癌症免疫等重要生命过程中发挥作用。我们在癌症、自身免疫等复杂性疾病中探索这些复杂的调控过程，并应用于免疫治疗。

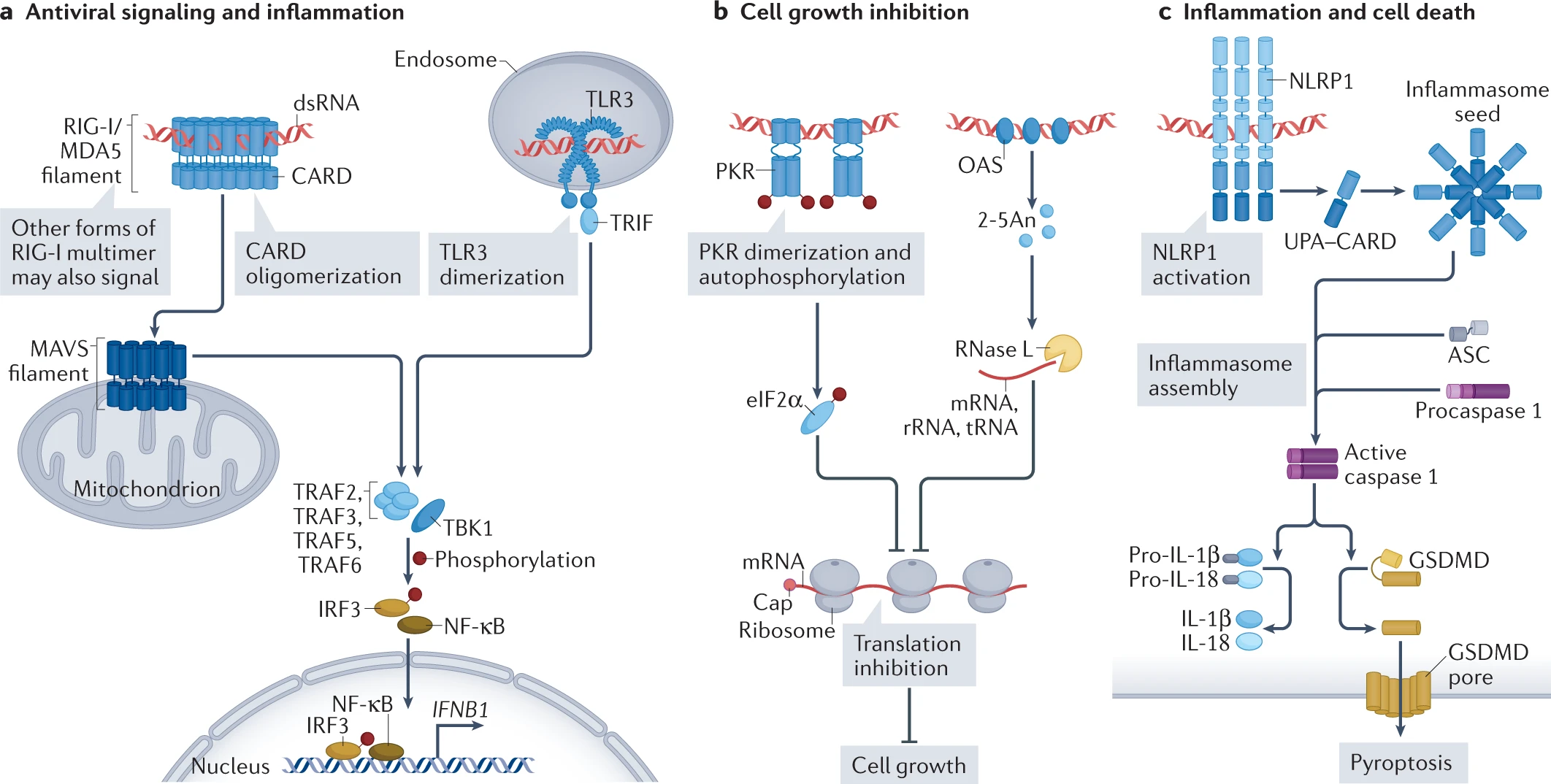

dsRNA sensors and their signalling (Chen & Hur, Nature Reviews 2022).

2. Cell-free RNA (cfRNA) Study in Cancer

cell-free RNAs (cfRNAs). The cfRNA content in clinical plasma samples is very low and fragmented. Therefore, it is necessary to solve the problems of low signal-to-noise ratio and high cost of sequencing data. We apply technologies such as TSO, early barcoding, UMI, and CRISPR-Cas9 to develop novel cfRNA-seq technologies that reduce the cost of high-throughput sequencing, and improve the signal-to-noise ratio of sequencing data.

In clinical studies like liquid biopsy, exRNA (extra-cellular RNA) is also called cfRNA (cell free RNA). Many exRNAs are noncoding RNAs (ncRNAs), like miRNA, lncRNA, srpRNA, circRN, etc.

cell-free RNAs (cfRNAs): 临床血浆样本中的 cfRNA 含量很低且碎片化，需要解决测序数据信噪比低、成本昂贵等问题。我们应用模板转换、早期标记、分子标签和CRISPR-Cas9等技术，开发新型 cfRNA-seq 技术，降低构建高通量测序文库的经济成本并提高了测序数据的信噪比。

exRNA (extra-cellular RNA) 在很多临床研究尤其是液体活检研究中又称为 cfRNA (cell free RNA) ，包括了很多非编码 RNA (ncRNA)，如 miRNA，lncRNA，srpRNA，circRNA等。

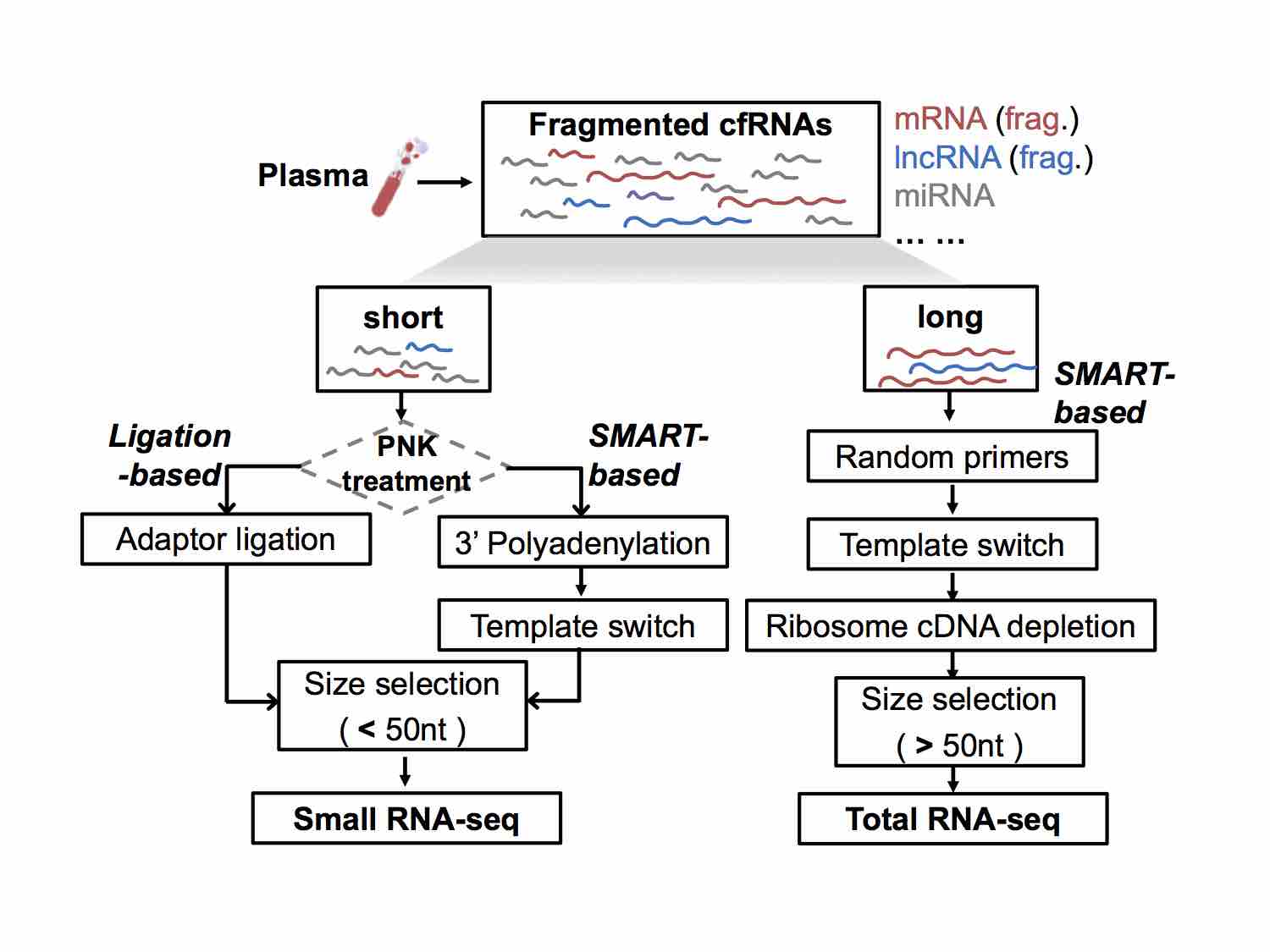

Different NGS (next-generation sequencing) libraries of cfRNAs

Multi-modal data integration. Multiple regulation events (e.g., expression, splicing, editing, fusion) can be quantified by bioinformatic analysis from NGS data like cfRNA-seq. For the multi-modal data, such as cfRNA-seq derived multi-view data and/or multi-omics data, we need 4 steps for machine learning analysis, including 1) Data Cleaning, 2) Feature extraction and engineering, 3) Model Fitting, 4) Classifier. We develop corresponding bioinformatics method, software, database and other tools for these four steps (see more in Software). For instance, we integrate these multi-modal data using deep learning models, such as Transformer, Adversarial autoencoder (AAE) and Deep adversarial variational autoencoder model.

Multi-modal data integration: 我们可以由cfRNA-seq等高通量测序方法通过生物信息分析计算得到多模态数据（例如表达、剪接、编辑、融合等）。对于这些多维度、多模态的高通量数据（例如 cfRNA-seq分析得到的多模态数据，以及multi-omics数据），我们需要进行4个步骤来进行机器学习等分析，包括 1) Data Cleaning, 2) Feature extraction and engineering, 3) Model Fitting, 4) Classifier。我们针对这4个步骤开发相应的生物信息学方法、软件、数据库等工具（详见： Software）。例如，我们探索转换器（Transformer）、对抗自编码器（Adversarial autoencoder, AAE）、深度对抗变分自动编码器模型（Deep adversarial variational autoencoder model）等深度学习模型，进行多模态数据的整合。

Clinical application for cancer screen. Subsequently, by applying these methods to liquid biopsy, we help many clinical studies like cancer screen.

Clinical application for cancer screen: 最后，我们将这些方法应用在液体活检上，助力解决临床问题，例如癌症早筛。

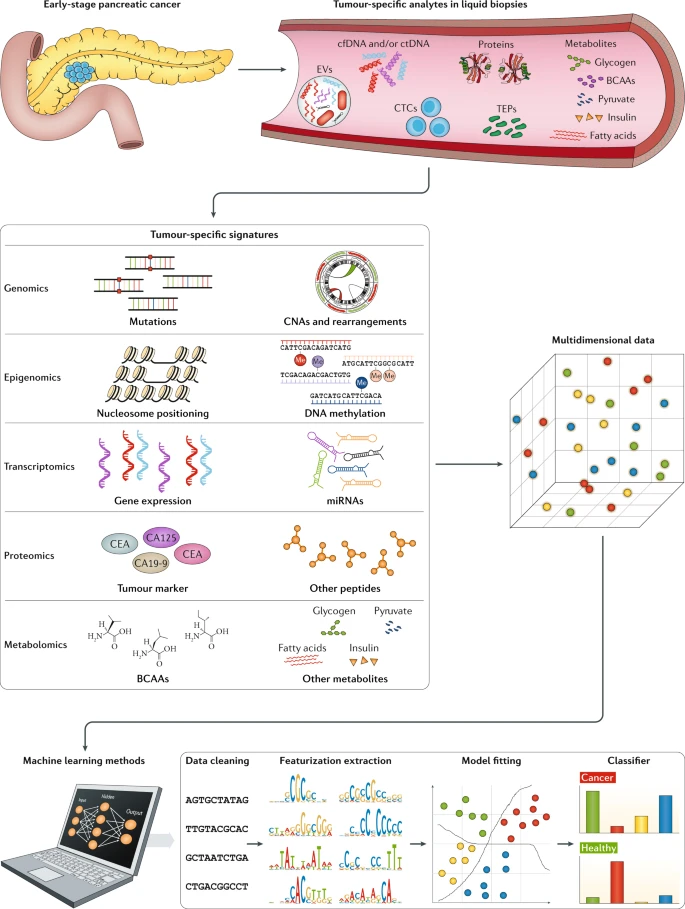

Multi-dimensional data for liquid biopsy of cancer (Heitzer et al., Nature Reviews 2019)

II. AI-driven RNA Modeling

The introduction of new methods and new thinking in different fields can often lead to breakthrough progress in this discipline, so we pay special attention to introducing new technologies and new thinking in the latest computing field (such as AI technology and large language model) into biological data. We develop novel RNA models to explore basic scientific questions such as the structure, regulation and target of RNA, especially noncoding RNA (ncRNA). Finally, these novel models will bring us the new era of enzyme and drug design.

不同领域的新方法和新思维的引入，往往能带来本学科的突破性进展，所以我们尤其注意将最新的计算领域的新技术和新思维（例如最新的AI技术和大语言模型）引入到生物数据的研究上。我们针对RNA，尤其是 非编码 RNA (ncRNA），的结构、调控和靶标等问题，开发新型的核酸模型。最终，这些新型的模型将会带领我们进入一个崭新思维的酶设计和药物设计的新时代。

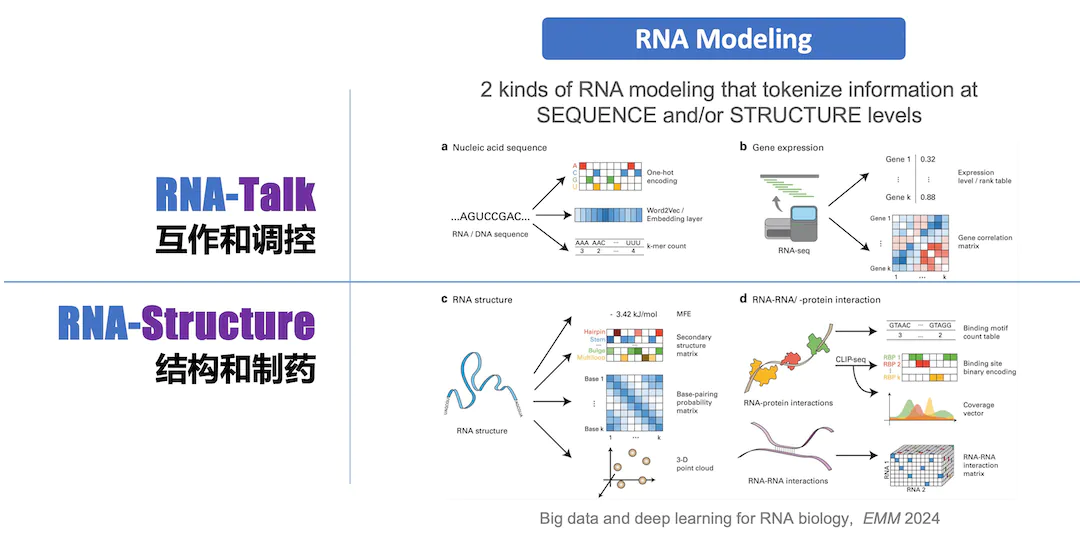

Based on new AI technologies, we develop RNA models for RNA structure prediction, Ribozyme optimization and design, siRNA Design, RNA vaccine design, functional RNA target prediction, RNA-based drug design, etc.

我们利用最新的人工智能技术开发各类核酸模型，进行RNA结构预测、核酶优化和设计、RNA疫苗设计、功能性 RNA 靶标预测、siRNA设计、靶标RNA的药物设计等研究。

1. RNA Structure Model for Enzyme and Vaccine Design

RNA structure prediction. We develop structure prediction models and algorithms for RNA. The accurate prediction of RNA structure will help us better understand its regulation and function, thus improving RNA-based enzyme and vaccince design. For instance, mRNA, as well as other RNAs like circular RNA, can be used as RNA vaccines. In the design of RNA vaccines, the design of RNA structure, codons and modifications are very important research directions. Improving the stability of RNA in storage and transportation, and the effectiveness and targeting of delivery to cells and the human body are very important and cutting-edge research directions.

RNA structure prediction: 我们开发针对 RNA结构的预测模型和算法，对 RNA 结构的准确预测，将帮助我们更好地理解 RNA 的调控和功能，并应用于基于 RNA酶和RNA疫苗的设计。例如，mRNA，以及环装RNA（circular RNA）等，可以用来做为RNA疫苗。在 RNA 疫苗设计中，RNA 结构、密码子和修饰的设计都是非常重要的研究方向。不论是 RNA干扰还是RNA疫苗，提高RNA 在存储和运输中的稳定性，递送到细胞和人体内的有效性和靶向性，都是非常重要和前沿的研究方向。

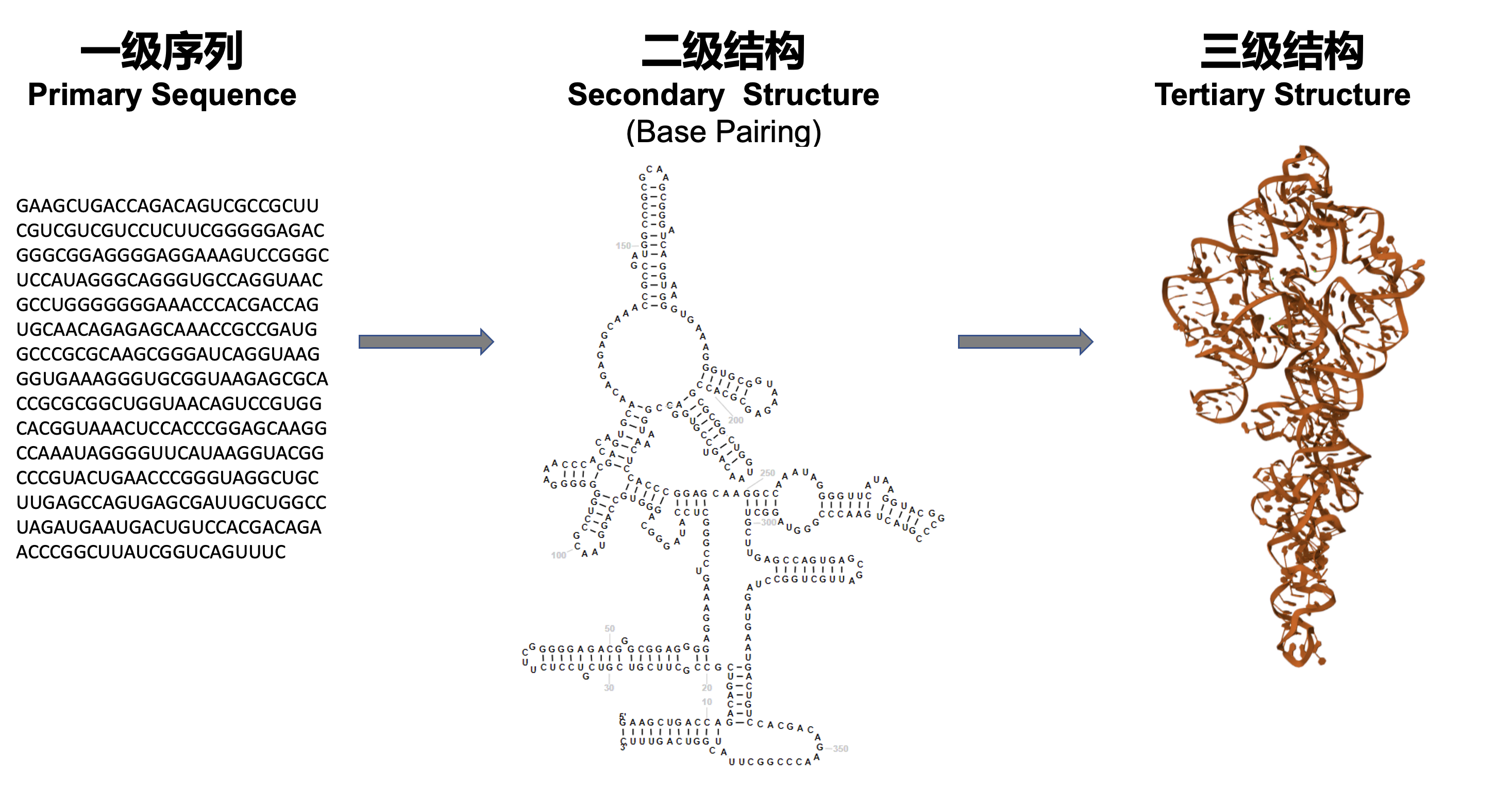

Prediction of 2D and 3D structure of RNA. (Waring & Davies. ,1984, Gene; Cate et al. ,1996, Science)

2. RNA-RNA Model for Target Prediction

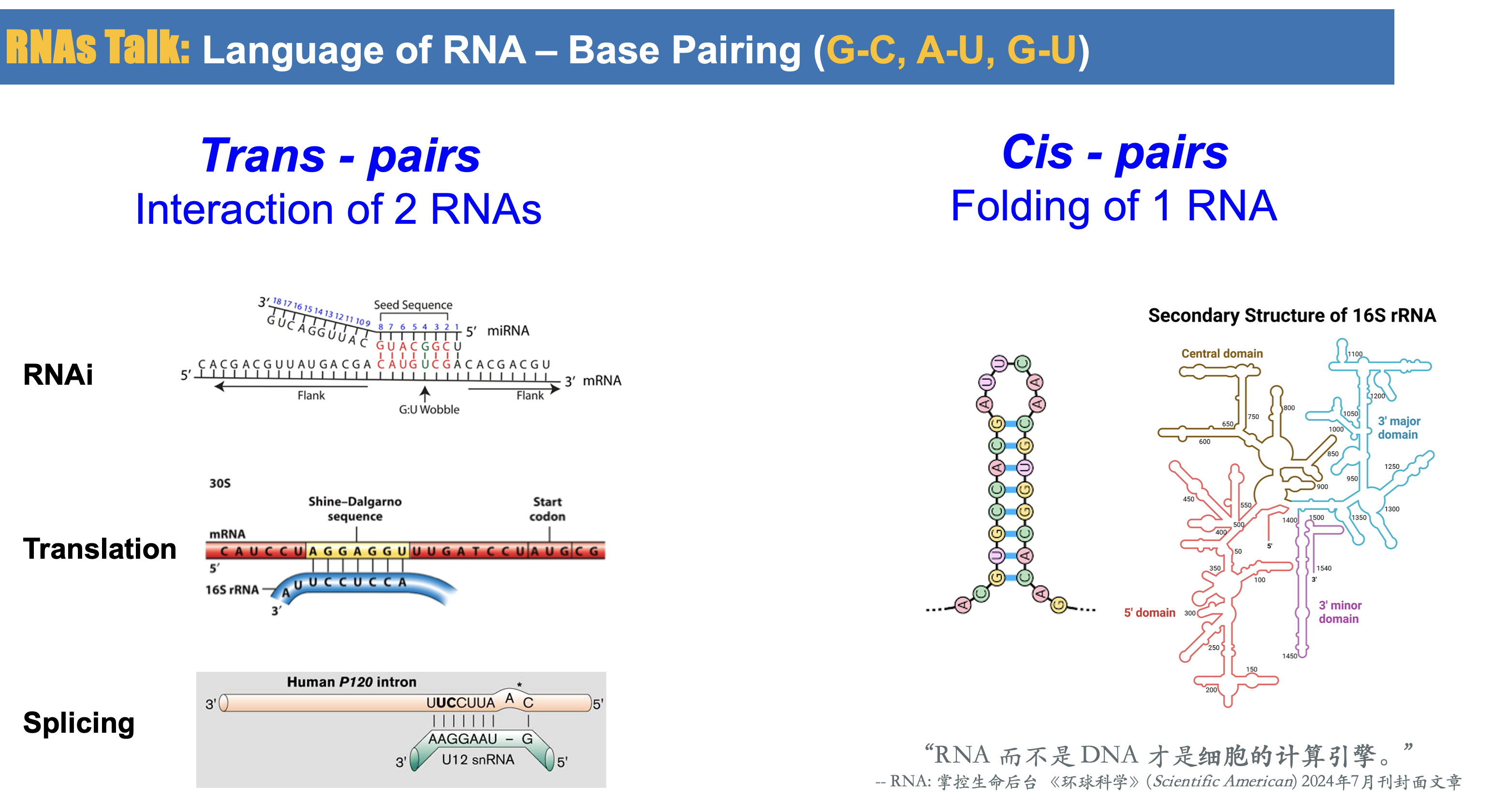

RNA-RNA interaction (RNA targeting RNA) plays a crucial role in various biological processes, including gene regulation, RNA processing, and viral replication. Predicting RNA-RNA interactions involves identifying and characterizing the binding sites between two RNA molecules, which can provide insights into their functional relationships and regulatory mechanisms. It’s important to note that predicting RNA-RNA interactions remains a challenging problem due to the complexity of RNA structures, the vast sequence space, and the limited availability of experimentally validated interaction data. Therefore, the accuracy of predictions can vary depending on the specific method used and the quality of input data. We develop and refine computational approaches for predicting RNA-RNA interactions, aiming to improve the understanding of RNA biology and facilitate the discovery of new therapeutic targets and RNA-based regulatory mechanisms.

RNA-RNA相互作用（RNA靶向RNA）在各种生物过程中发挥着至关重要的作用，包括基因调控、RNA加工和病毒复制。 预测 RNA-RNA 相互作用涉及识别和表征两个 RNA 分子之间的结合位点，这可以深入了解它们的功能关系和调控机制。 值得注意的是，由于 RNA 结构的复杂性、巨大的序列空间以及经过实验验证的相互作用数据的有限性，预测 RNA-RNA 相互作用仍然是一个具有挑战性的问题。 因此，预测的准确性可能会根据所使用的具体方法和输入数据的质量而有所不同。 我们开发和完善用于预测 RNA-RNA 相互作用的计算方法，旨在提高对 RNA 生物学的理解，并促进新的治疗靶点和基于 RNA 的调控机制的发现。

3. RNA-drug Model for Drug Design

siRNA design. Small interfering RNA (siRNA) has become a widely used experimental approach for post-transcriptional regulation and is increasingly showing its potential as future targeted drugs. However, the prediction of highly efficient siRNAs is still hindered by dataset biases, the inadequacy of prediction methods, and the presence of off-target effects. To overcome these limitations, we develop novel AI approaches for the prediction and design of efficient siRNA.

siRNA design: siRNA已成为一种广泛使用的转录后调控实验方法，并且越来越显示出其作为未来靶向药物的潜力。 然而，高效siRNA的预测仍然受到数据集偏差、预测方法的不足以及脱靶效应的存在的阻碍。为了克服这些限制，我们开发新的人工智能方法来预测和设计高效的siRNA。

Small molecule drug design targeting RNA. The number of human proteins that can be used as small-molecule drug targets is very limited：Of the ~20 thousand protein-coding genes in human (~1.5% of human genome sequence), about 10%-15% are directly related to diseases; among these genes, it is estimated that less than 700 protein products are druggable (only ~0.05% of human genome sequence). On the other hand, ~70% or more of the human genome are transcribed into RNAs. Most of them are noncoding RNAs (ncRNAs). In recent years, more and more researchers have tried to use RNA as a drug target, and initially proved the feasibility of this strategy. In particular, it is worth noting that Coronavirus (COVID-19) is an RNA virus, and its genome itself is also promising as a drug target. In addition, using noncoding RNA for disease treatment is also a promising research direction, for example, siRNA-based RNA interference (RNAi) system has aleady been used to develop new gene therapy methods. Due to the high complexity and variability of RNA structure and the limitations of experimental methods, our current understanding of the three-dimensional structure of RNA is still very limited, and the development of RNA-targeting drugs is still in its infancy. We will use the latest artificial intelligence technologies such as deep learning to integrate various information, and subsequently to design drugs targeting RNAs.

Small molecule drug design targeting RNA: 可作为小分子药物靶标的人类蛋白数量非常有限：在人类的2万个左右的蛋白编码基因（占人类基因组总长度的1.5%左右）中，大约有 10%-15%与疾病直接相关；而在这些基因中，据估计仅有不到 700 个的蛋白产物是可以成药的 （仅占人类基因组总长度的 0.05%左右）。另一方面，人类基因组的~70%甚至更多都会被转录成 RNA，其中大多是非编码 RNA (ncRNA)。因此，近年开始有越来越多的研究者试图将 RNA 作为药物靶标，并初步证明了这一策略的可行性。尤其值得我们注意的是，新冠病毒就是 RNA 病毒，其基因组本身也有希望被作为药物靶标。此外，利用非编码RNA进行疾病治疗也是一个有前景的研究方向，例如，基于 siRNA 的RNA干扰（RNA interference, RNAi）系统等已经被用于开发新的基因治疗方法。由于 RNA 结构的高度复杂性和可变性，以及实验方法的限制，目前我们对于 RNA 的三维结构的了解仍非常有限，靶向 RNA 的药物研发也处在起步阶段。 我们将充分发挥人工智能的优势，利用深度学习等最新的计算技术整合多方面的信息，设计新药物靶标RNA。


The potential RNA-targeted druggable genome (Warner, et al., Nature Reviews | Drug Discovery  2018)
